Description
Troy VTX Traditional Cast Iron Plates with a Protective Enamel Finish
Troy VTX Cast Iron Olympic Plates provide traditional iron resistance with a wide-flanged profile and a twice-baked gray enamel finish. Built for home and light commercial strength training, these Olympic weight plates offer a straightforward option for squats, presses, deadlifts, and plate-loaded exercises. Raised weight markings make the selected load easier to identify, while available sizes from 2.5 to 100 lbs support gradual progression and heavier training configurations.
Reinforced Grips for Easier Plate Handling
Three slotted gripping areas on the 10, 25, 35, and 45 lb sizes provide convenient hand positions when moving plates between storage, Olympic barbells, and compatible machines. Raised reinforcement surrounding each opening strengthens these frequently handled areas. The 2.5, 5, and 100 lb VTX Plates use solid profiles without grip openings, matching their compact change-plate or heavy-plate formats while maintaining a coordinated appearance across the collection.
Individual Plates and Sets for Different Training Spaces
A precision-drilled 50.4 mm center opening gives the Troy VTX Olympic Plates a secure fit on most compatible 2-inch Olympic bar sleeves. Buyers can order individual weights to replace missing plates or expand an existing selection, or choose preconfigured stock sets ranging from 245 to 2760 lbs. This flexibility supports anything from one residential lifting area to multi-station school weight rooms, apartment fitness centers, and personal-training studios.
- Order Options: Individual plates or preconfigured stock plate sets
- Available Sizes: 2.5, 5, 10, 25, 35, 45, and 100 lbs
- Stock Sets: 245-2760 lbs
- Items Not Included: Olympic barbell and collars are not included
- Assembly: Not Required
- Use: Home or Light Commercial
Key Product Features
- Solid Cast Iron Construction: Provides traditional iron resistance for barbell and plate-loaded strength exercises.
- Wide-Flanged Profile: Creates an accessible plate edge for handling during workout changes.
- Twice-Baked Gray Enamel: Adds a rust-resistant protective finish to the exposed cast iron.

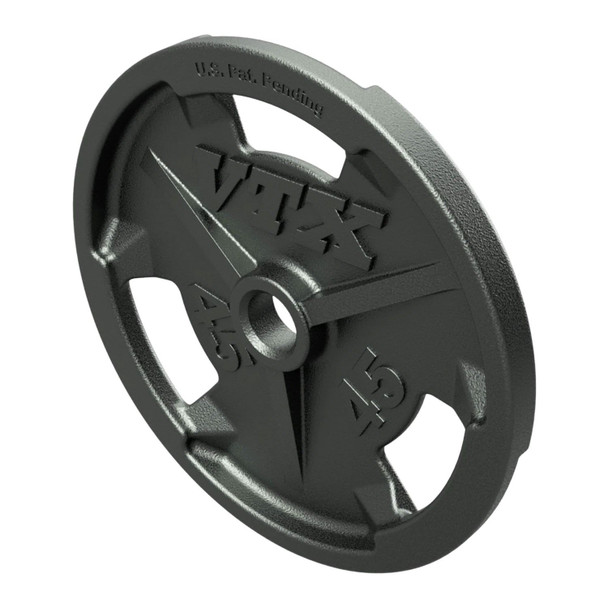

- Three-Slot Grip Design: Gives the 10, 25, 35, and 45 lb plates multiple handling positions for loading and unloading.
- Reinforced Grip Openings: Strengthen the frequently handled areas surrounding each grip slot.
- Solid Plate Profiles: Keep the 2.5, 5, and 100 lb sizes in a solid configuration without grip openings.
- Precision-Drilled Center Bore: Provides a secure fit on most compatible 2-inch Olympic sleeves.
- Raised Weight Markings: Make plate weights easier to identify during training and storage.
Product Specifications
| Product Type | Cast Iron Olympic Weight Plates |
|---|---|
| Material | Solid Cast Iron |
| Plate Profile | Wide-Flanged |
| Finish | Twice-Baked Gray Enamel |
| Available Weights | 2.5, 5, 10, 25, 35, 45, and 100 lbs |
| Three-Grip Sizes | 10, 25, 35, and 45 lbs |
| Solid Plate Sizes | 2.5, 5, and 100 lbs |
| Center Opening | 50.4 mm |
| Bar Compatibility | Compatible 2-Inch Olympic Bar Sleeves |
| Assembly | Not Required |
| Use | Home or Light Commercial |

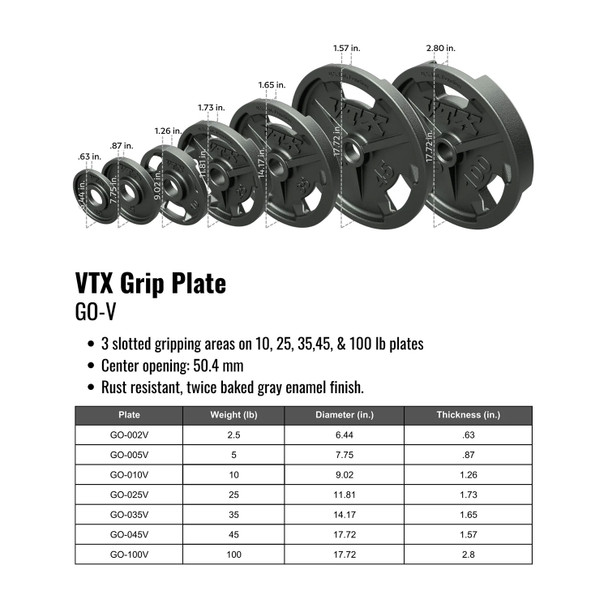

Plate Size and Dimension Reference
| Plate Weight | Diameter | Thickness | Plate Design |
|---|---|---|---|
| 2.5 lbs | 6.44" | 0.63" | Solid Change Plate |
| 5 lbs | 7.75" | 0.87" | Solid Change Plate |
| 10 lbs | 9.02" | 1.26" | Three-Slot Grip |
| 25 lbs | 11.81" | 1.73" | Three-Slot Grip |
| 35 lbs | 14.17" | 1.65" | Three-Slot Grip |
| 45 lbs | 17.72" | 1.57" | Three-Slot Grip |
| 100 lbs | 17.72" | 2.80" | Solid Heavy Plate |
Available Stock Plate Sets
| Stock Set | Includes |
|---|---|
| 245 lb Set | (2) 45 lb, (2) 35 lb, (2) 25 lb, (2) 10 lb, (2) 5 lb, and (2) 2.5 lb plates |
| 255 lb Set | (2) 45 lb, (2) 35 lb, (2) 25 lb, (2) 10 lb, (4) 5 lb, and (2) 2.5 lb plates |
| 345 lb Set | (4) 45 lb, (2) 35 lb, (2) 25 lb, (2) 10 lb, (4) 5 lb, and (2) 2.5 lb plates |
| 355 lb Set | (4) 45 lb, (2) 35 lb, (2) 25 lb, (2) 10 lb, (6) 5 lb, and (2) 2.5 lb plates |
| 455 lb Set | (6) 45 lb, (2) 35 lb, (2) 25 lb, (4) 10 lb, (4) 5 lb, and (2) 2.5 lb plates |
| 690 lb Set | (8) 45 lb, (4) 35 lb, (4) 25 lb, (4) 10 lb, (8) 5 lb, and (4) 2.5 lb plates |
| 1380 lb Set | (16) 45 lb, (8) 35 lb, (8) 25 lb, (8) 10 lb, (16) 5 lb, and (8) 2.5 lb plates |
| 2760 lb Set | (32) 45 lb, (16) 35 lb, (16) 25 lb, (16) 10 lb, (32) 5 lb, and (16) 2.5 lb plates |
