Description
Troy HO Deep-Dish Olympic Plates for Traditional Strength Rooms
Troy (HO) Gray Machined Olympic Plates combine ASTM Grade 20 cast iron with extensive machining for a classic deep-dish weight-plate design. Troy machines the rim, sides, back, and center hole to create a consistent fit and maintain a documented plus-or-minus two percent weight tolerance. A baked Hammertone Gray enamel finish protects the iron while preserving the traditional appearance associated with plate-loaded and barbell strength training.
Wide-Flange Handling with Fully Machined Surfaces
These Troy Machined Weight Plates use a broad outer flange that gives lifters a defined place to hold the plate during carrying, loading, and unloading. The deep-dish profile leaves more of the edge accessible to the hands, while raised weight markings support quick identification during resistance changes. Precision-machined centers fit compatible two-inch Olympic sleeves for straightforward use with barbells, storage horns, and plate-loaded strength equipment.
Individual Plates, Matching Packs, and Stock Set Options
Buyers can choose individual machined Olympic weight plates, matching plate packs, or preconfigured stock sets. Single plates support replacements and incremental expansion, while packs help facilities add repeated working weights across several stations. Larger set options provide coordinated inventories for broader weight rooms without requiring buyers to assemble every plate quantity separately.
Key Product Features
- Fully Machined Construction: Machined rims, sides, backs, and center holes support a consistent shape and fit.
- Plus or Minus 2% Weight Tolerance: Helps lifters build more balanced working loads.
- ASTM Grade 20 Cast Iron: Provides a solid base for home and commercial strength training.
- Deep-Dish Wide Flange: Leaves more of the plate edge open for carrying, loading, and unloading.
- Baked Hammertone Gray Enamel: Gives the cast iron a traditional finished surface.
- Raised Weight Markings: Make each plate size easier to identify during workouts.
- Seven Available Weights: Supports smaller load changes and heavy barbell training.
Product Specifications
| Series | HO |
|---|---|
| Product Type | Machined Olympic Weight Plate |
| Material | ASTM Grade 20 Cast Iron |
| Machined Surfaces | Rim, Sides, Back, and Center Hole |
| Weight Tolerance | +/- 2% |
| Center Hole Diameter | 50.4 mm |
| Bar Compatibility | Compatible Olympic Bars and Equipment with 2" Sleeves |
| Plate Profile | Solid Round Plate with Deep-Dish Wide Flange |
| Finish | Baked Hammertone Gray Enamel |
| Weight Identification | Raised Plate Markings |
| Individual Plates Sold | Singly |
| Assembly | Not Required |
| Use | Home or Commercial |
Available Plate Sizes
| Plate Weight | Outer Diameter | Plate Thickness | Center Hole |
|---|---|---|---|
| 2.5 lbs | 6.25" | 0.63" | 50.4 mm |
| 5 lbs | 7.75" | 0.87" | 50.4 mm |

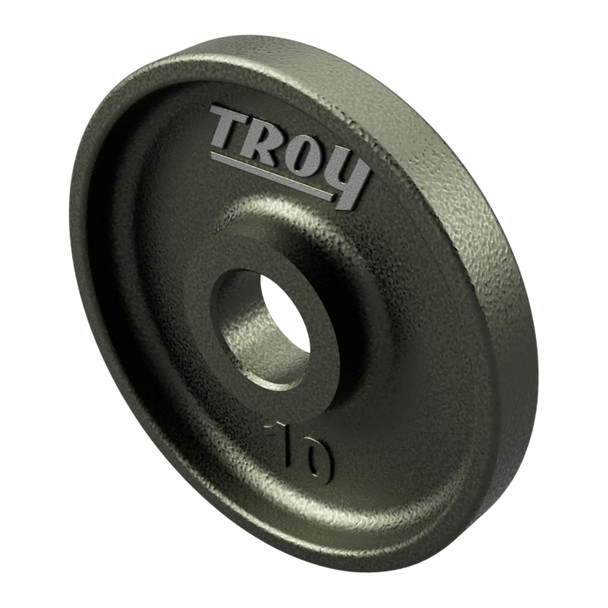

| 10 lbs | 9.00" | 1.12" | 50.4 mm |
| 25 lbs | 11.81" | 1.45" | 50.4 mm |
| 35 lbs | 14.17" | 1.57" | 50.4 mm |
| 45 lbs | 17.72" | 1.45" | 50.4 mm |

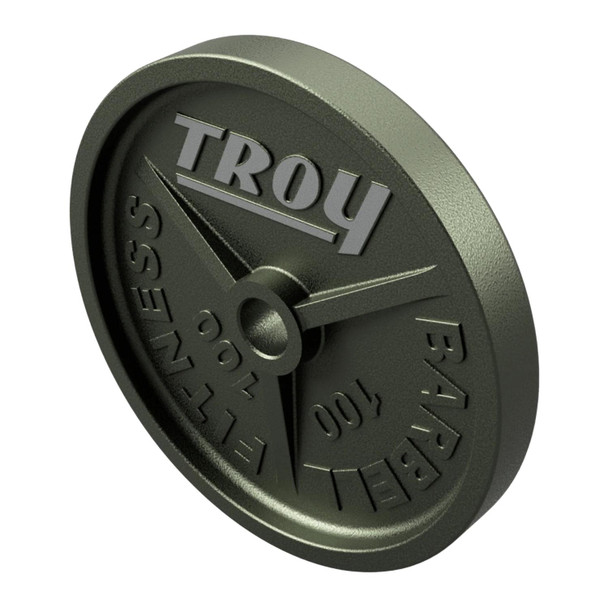

| 100 lbs | 17.72" | 2.87" | 50.4 mm |
Available Stock Plate Sets
| Stock Set | Includes |
|---|---|
| 245 lb Set | (2) 45 lb, (2) 35 lb, (2) 25 lb, (2) 10 lb, (2) 5 lb, and (2) 2.5 lb plates |
| 255 lb Set | (2) 45 lb, (2) 35 lb, (2) 25 lb, (2) 10 lb, (4) 5 lb, and (2) 2.5 lb plates |
| 345 lb Set | (4) 45 lb, (2) 35 lb, (2) 25 lb, (2) 10 lb, (4) 5 lb, and (2) 2.5 lb plates |
| 355 lb Set | (4) 45 lb, (2) 35 lb, (2) 25 lb, (2) 10 lb, (6) 5 lb, and (2) 2.5 lb plates |
| 455 lb Set | (6) 45 lb, (2) 35 lb, (2) 25 lb, (4) 10 lb, (4) 5 lb, and (2) 2.5 lb plates |
| 690 lb Set | (8) 45 lb, (4) 35 lb, (4) 25 lb, (4) 10 lb, (8) 5 lb, and (4) 2.5 lb plates |
| 1,380 lb Set | (16) 45 lb, (8) 35 lb, (8) 25 lb, (8) 10 lb, (16) 5 lb, and (8) 2.5 lb plates |
| 2,760 lb Set | (32) 45 lb, (16) 35 lb, (16) 25 lb, (16) 10 lb, (32) 5 lb, and (16) 2.5 lb plates |
Available Plate Packs
| Plate Pack | Includes |
|---|---|
| 45 lb Plates - 4 Pack | (4) 45 lb Troy HO Gray Machined Olympic Plates |
| 45 lb Plates - 6 Pack | (6) 45 lb Troy HO Gray Machined Olympic Plates |
| 45 lb Plates - 8 Pack | (8) 45 lb Troy HO Gray Machined Olympic Plates |
| 45 lb Plates - 10 Pack | (10) 45 lb Troy HO Gray Machined Olympic Plates |
| 100 lb Plates - 4 Pack | (4) 100 lb Troy HO Gray Machined Olympic Plates |
| 100 lb Plates - 6 Pack | (6) 100 lb Troy HO Gray Machined Olympic Plates |
| 100 lb Plates - 8 Pack | (8) 100 lb Troy HO Gray Machined Olympic Plates |
| 100 lb Plates - 10 Pack | (10) 100 lb Troy HO Gray Machined Olympic Plates |
Ideal Training Environments
- Commercial Strength Centers: Fully machined cast iron and deep-dish wide flanges support traditional plate handling across high-use barbell areas.
- School & College Weight Rooms: Individual plates, matching packs, and stock sets make it easier to standardize loading across multiple supervised stations.
- Athletic Training Facilities: Broad weight choices and precise machining support heavy barbell work and compatible plate-loaded strength equipment.
Need a Price Quote?
- Add desired products and quantities using the "Add to Quote" button.
- Finalize and submit your quote request once complete.
- Quotes are typically returned within one business day.
- Learn how to request a gym equipment price quote.
School, College, Government & Military Purchase Orders
- Net 30 payment terms are available for approved schools, colleges, government agencies, and military facilities.
- Learn about purchase orders for fitness equipment.
- Visit our school and college fitness equipment supplier page.
- Visit our military and government fitness equipment supplier page.
Delivery Information
- Orders 129 lbs or Less Ship: UPS or FedEx Ground
- Orders 130 lbs or More Ship: Freight Carrier
- Leaves Warehouse: Up to 3-5 Business Days
- Transit Time: Up to 3-5 Business Days
- Delivery Appointment Required: Yes (Freight Shipments)
- Delivery Location: Curbside or Loading Dock (Freight Shipments)
- Freight Company Will Call for Appointment: Yes
- Tracking Provided: Yes
Details
Grade: |
Commercial |
Type: |
Cast Iron |
Type: |
Machined |
Color: |
Gray |
Warranty
Home & Commercial Use:
- Limited 10 year warranty against breakage
- 1 year warranty against manufacturer defects
- Does not cover paint chipping, rust or abusive treatment
Product Reviews
-
690LBS TROY HO GRAY CAST IRON MACHINED OLYMPIC PLATES SET
OUTSTANDING THEY ARE JUST WHAT I NEED TO KEEP ME IN SHAPE I TURN 68 02/10/2023
