Smith Machine, Free-Weight Rack, and Cable Training in One System:

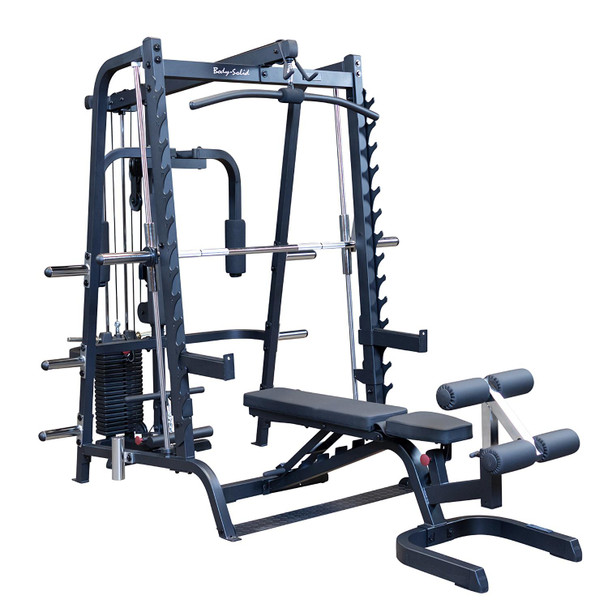

One frame supports both guided and traditional barbell work in the Body-Solid Series 7 Smith Machine Gym Package. The GS348B combines a 7-degree Smith machine path with 20 lock-out positions, linear-bearing travel, and a 14-position front gun rack for free-weight exercises. A 210 lb selectorized high/low pulley, pec station, adjustable bench, leg developer, and preacher curl attachment expand the system beyond squats and presses to rows, pulldowns, flyes, curls, and leg work. Six plate-storage posts organize compatible Olympic plates around the frame. Built for one user at a time, this Body-Solid Smith Machine Package suits home gyms, schools, studios, hotels, and light commercial rooms.
Quick Buying Guide:
- Order Includes: Smith machine, high/low pulley, pec station, adjustable bench, leg developer, preacher curl attachment, lat bar, low row bar, and adjustable foot brace
- Training Formats: Guided Smith exercises, free-weight barbell exercises, selectorized cable exercises, and bench-based movements
- Standard Cable Stack: 210 lbs
- User Configuration: Intended for one user at a time
- Not Included: Free-weight barbell, Olympic weight plates, and spring collars
- Assembly: Assembly required
- Use: Home or Light Commercial
Key Product Features
- 7-Degree Smith Path: The guided bar travels along angled guide rods.
- Linear Bearing System: Linear bearings guide the Smith bar carriage during each repetition.
- Twenty Lock-Out Positions: The Smith bar can be rotated into multiple resting points along the guide system.
- Fourteen-Position Gun Rack: Front bar supports provide several lift-off and re-racking heights for free-weight exercises.
- 210 lb Selectorized Cable Stack: The included high and low pulley station uses pin-selected resistance.
- Integrated Pec Station: The GPA3B attachment adds pec fly and rear-deltoid exercise options.
- Adjustable Bench: The included GFID71B bench supports several pressing and free-weight positions.
- Leg and Preacher Attachments: The package includes a leg developer and preacher curl station for additional lower-body and arm exercises.
- Six Olympic Plate-Storage Posts: Frame-mounted posts organize compatible plates with 2-inch center holes.
Product Specifications
| Package Model | GS348BP4 |
|---|---|
| Product Type | Smith Machine Gym Package with Free-Weight Rack and Cable System |
| Smith Machine Angle | 7 Degrees |
| Smith Bar Guidance | Linear Bearings |
| Smith Bar Starting Weight | 25 lbs |
| Smith Lock-Out Positions | 20 |
| Free-Weight Rack Positions | 14 |
| Smith Machine Capacity | 600 lbs |
| Free-Weight Rack Capacity | 1,000 lbs |
| Cable Resistance | 210 lb Selectorized Weight Stack |
| Plate Storage | Six Integrated Olympic Plate Posts |
| Dimensions | 98" L × 70" W × 83" H |
| Total System Weight | 724 lbs |
| Barbell, Plates, and Collars Included | No |
| Assembly | Assembly Required |
| Use | Home or Light Commercial |
Included Series 7 Gym Components
| Model or Item | Included Component |
|---|---|
| GS348B | Series 7 Smith Machine with Free-Weight Gun Rack |
| GLA348BS | High and Low Pulley with 210 lb Selectorized Weight Stack |
| GPA3B | Pec Station |
| GFID71B | Adjustable Bench |
| GLDA3 | Leg Developer Attachment |
| GPCA1 | Preacher Curl Station |
| Included Accessories | Lat Bar, Low Row Bar, and Adjustable Foot Brace |
Need a Price Quote?
- Add desired products and quantities using the "Add to Quote" button.
- Finalize and submit your quote request once complete.
- Quotes are typically returned within one business day.
- Learn about workout equipment price quotes.
School, College, Government & Military Purchase Orders
- We provide net 30 payment terms for schools, colleges, government, and military facilities.
- Learn about purchase orders for gym equipment.
- Visit our school and college fitness equipment supplier page.
- Visit our military and government fitness equipment supplier page.
Delivery Information
- Shipping Method: Freight Carrier
- Leaves Warehouse: Up to 3–5 Business Days
- Transit Time: Up to 3–5 Business Days
- Delivery Appointment Required: Yes
- Delivery Location: Curbside or Loading Dock
- Freight Company Will Call for Appointment: Yes
- Tracking Provided: Yes
Details
Grade: |
Commercial |
Warranty
Light Commercial Warranty
- Frames, Welds: Lifetime
- Pulleys, Bushings, Bearings & Hardware: 3 Years
- Cables, Upholstery, Grips & All Other Components: 1 Year
Home Warranty
- Frame & Welds: Lifetime
- Pulleys, Bushings, Bearings, Hardware, Plates & Guide Rods: Lifetime
- Cables, Upholstery & Grips (Normal Wear): Lifetime
