Six Back and Arm Exercises from One Weight Stack
The Inflight Multi Lat Arm Machine combines lat pulldowns, mid rows, low rows, biceps curls, triceps pushdowns, and back extensions within one selectorized station. A height-adjustable thigh and preacher pad changes roles with the selected exercise, helping users establish a supported position. The tightening pop pin reduces unwanted pad movement during training. This broad exercise mix makes the machine useful where floor space must support several upper-body program needs.
Selectable Resistance for Different Users and Programs
The standard tiered stack supports smaller starting changes, while optional upgrades extend the available resistance for stronger users. A simple selector pin lets users adjust the load without handling loose plates. The Inflight Lat Machine fits schools, hotels, apartment gyms, personal-training studios, and light-commercial facilities that need varied back and arm work in one organized station rather than several separate machines. The combined format also helps simplify equipment purchasing decisions.
Commercial Components in a Light-Commercial Design
Flat-oval steel tubing forms the frame, while rated cable and large pulleys support controlled movement. Steel shrouds help separate users from the weight stack and display exercise guidance for easier station setup. This selectorized upper-body machine is best for buyers who prioritize exercise variety, approachable resistance changes, and space efficiency while serving users with different goals and experience levels. It provides a clear exercise path for coached facility programs.
Key Product Features
- Six Exercise Functions: Combines major back, arm, and trunk movements in one station.
- Height-Adjustable Thigh Pad: Provides hold-down support during pulldowns and rows.
- Integrated Preacher Support: Allows the adjustable pad to serve bicep-curl positioning.
- Tightening Pop Pin: Adds a secondary tightening action at the pad adjustment.
- Tiered Weight Stack: Starts at 200 lbs and supports 250 lb or 300 lb configurations.
- Flat-Oval Steel Frame: Uses 2" × 4" tubing for a substantial selectorized structure.
- High-Rated Cable: Uses a 0.25-inch cable rated to 4,000 lbs.
- Large Pulleys: Employs 4.5-inch pulleys for the cable path.
- Steel Stack Shrouds: Enclose the stack with powder- and clear-coated steel panels.
Product Specifications
| Model | CT-MLAS |
|---|---|
| Product Type | Multi-Exercise Selectorized Lat and Arm Machine |
| Exercise Count | 6 |
| Exercises | Lat Pulldown, Mid Row, Low Row, Bicep Curl, Tricep Pushdown, and Hyper-Back Extension |
| Thigh/Preacher Pad | Height Adjustable |
| Pad Locking Method | Pop Pin with Tightening Function |
| Standard Weight Stack | 200 lbs |
| Available Weight Stacks | 200, 250, or 300 lbs |
| Frame Tubing | 2" × 4" Flat-Oval Steel |
| Frame Gauge | 11- and 12-Gauge Steel |
| Cable Diameter | 0.25" |
| Cable Rating | 4,000 lbs |
| Pulley Diameter | 4.5" |
| Weight-Stack Shrouds | Powder- and Clear-Coated Steel |

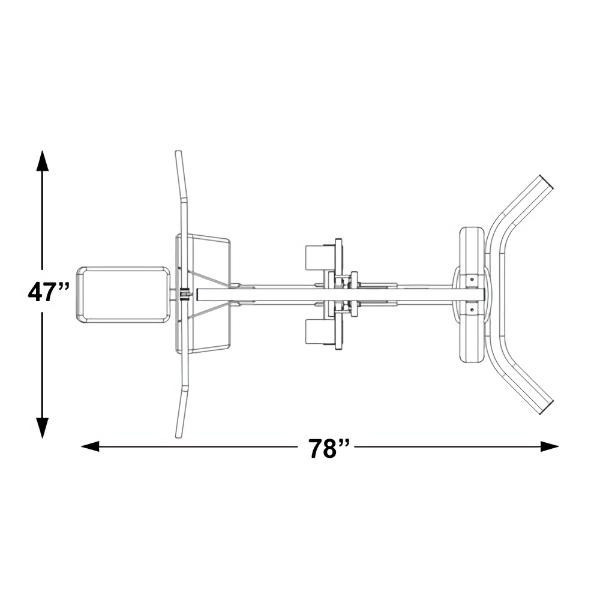

| Dimensions | 77.75" L × 47" W × 82" H |
| Product Weight | 404 lbs with 200 lb Stack |
| Assembly | Required |
| Use | Home or Light Commercial |
Weight Stack Options
| 200 lb Weight Stack | (5) 5 lb Plates, (10) 10 lb Plates, and (5) 15 lb Plates |
|---|---|
| 250 lb Weight Stack | (10) 10 lb Plates and (10) 15 lb Plates |
| 300 lb Weight Stack | (20) 15 lb Plates |
