Description
Guided Plate-Loaded Squats from a Commercial Frame:

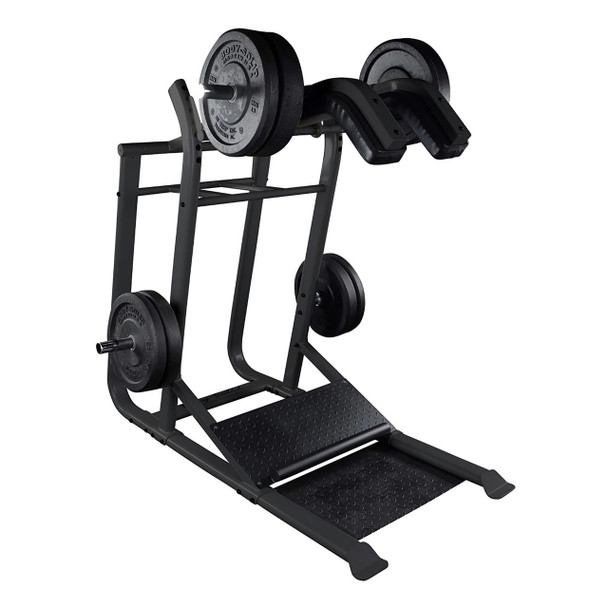

The Body-Solid (SLS500B) Leverage Squat Machine uses a pivoting movement arm to guide plate-loaded squats along a defined path. Padded shoulder supports establish contact beneath the leverage arm, while the angled platform gives users room to select a stable stance. This commercial squat machine offers a repeatable alternative to free-bar squatting for shared lower-body programs. Users do not have to balance a free bar across their shoulders.
Integrated Calf Block Expands Lower-Leg Training:
A rounded calf block is built into the Body-Solid Leverage Squat platform, allowing standing calf raises without moving to a separate station. The raised surface supports heel travel below the forefoot at the bottom of the movement. This dual-purpose setup helps facilities use the machine for both large lower-body patterns and focused calf work while keeping the exercise area centered on one plate-loaded frame. Both exercises therefore remain within one dedicated station footprint.
Olympic Loading and Storage Stay on the Machine:
This Body-Solid Plate-Loaded Squat Machine includes dual 11-inch Olympic loading horns and frame-mounted plate storage. Its unloaded carriage begins at 30 lbs, giving buyers a known starting resistance before plates are added. An oval 11-gauge steel frame and black finish support commercial placement. Olympic plates are not included, so facilities can load the machine from their existing plate inventory and storage plan. Frame-mounted storage keeps additional plates close to the loading horns.
Key Product Features:
- Guided Leverage Movement: Provides a defined plate-loaded path for squat repetitions.
- Angled Squat Platform: Creates a dedicated stance area beneath the movement arm.
- Rounded Calf Block: Supports standing calf raises and added heel travel.
- Padded Shoulder Supports: Provide the user contact points beneath the leverage arm.
- Dual Olympic Loading Horns: Accept compatible Olympic plates on two 11-inch posts.
- Integrated Plate Storage: Keeps additional Olympic plates on the machine frame.
- 30 lb Unloaded Carriage: Establishes the published starting carriage weight before plates are added.
- Oval 11-Gauge Steel: Forms the primary commercial frame structure.
Product Specifications:
| Model | SLS500B |
|---|---|
| Product Type | Commercial Plate-Loaded Leverage Squat Machine |
| Resistance Type | Plate Loaded |
| Primary Exercise | Leverage Squat |
| Additional Exercise | Standing Calf Raise |
| Squat Platform | Angled |
| Calf Block | Integrated Rounded Block |
| Frame Construction | Oval 11-Gauge Steel |
| Finish | Black |
| Olympic Loading Horns | Two |
| Loading Horn Length | 11" Each |
| Plate Storage | Integrated |
| Unloaded Carriage Weight | 30 lbs |
| Dimensions | 74" L × 61" W × 67" H |
| Product Weight | 397 lbs |
| Weight Plates Included | No |
| Assembly | Required |
| Use | Home or Commercial |
Ideal Training Environments:
- Commercial Strength Facilities: A guided squat path supports repeated lower-body training in busy rooms.
- Schools and Athletic Programs: The integrated calf block adds a second exercise to team strength sessions.
- Military and Public-Safety Gyms: Olympic loading and on-frame storage fit established plate-based programs.
Need a Price Quote:
- Add desired products and quantities using the "Add to Quote" button.
- Finalize and submit your quote request once complete.
- Quotes are typically returned within one business day.
- Learn about fitness equipment price quotes.
School, College, Government & Military Purchase Orders:
- We provide net 30 payment terms for qualified schools, colleges, government agencies, and military facilities.
- Learn about purchase orders for fitness equipment.
- Visit our school and college fitness equipment supplier page.
- Visit our military and government fitness equipment supplier page.
Delivery Information:
- Shipping Method: Freight Carrier
- Leaves Warehouse: Up to 3–5 Business Days
- Transit Time: Up to 3–5 Business Days
- Delivery Appointment Required: Yes
- Delivery Location: Curbside or Loading Dock
- Freight Company Will Call for Appointment: Yes
- Tracking Provided: Yes
Details
Grade: |
Commercial |
Warranty
Commercial Warranty
- Lifetime: Frame & Welds
- 3 Years: Bushings, Bearings & Hardware
- 1 Year: Upholstery & Grips (Normal Wear)
Home Warranty
- Lifetime: Frame & Welds
- Lifetime: Bushings, Bearings & Hardware
- Lifetime: Upholstery & Grips (Normal Wear)
