Description
Vertical Leg Press Machine for Focused Lower Body Strength Development

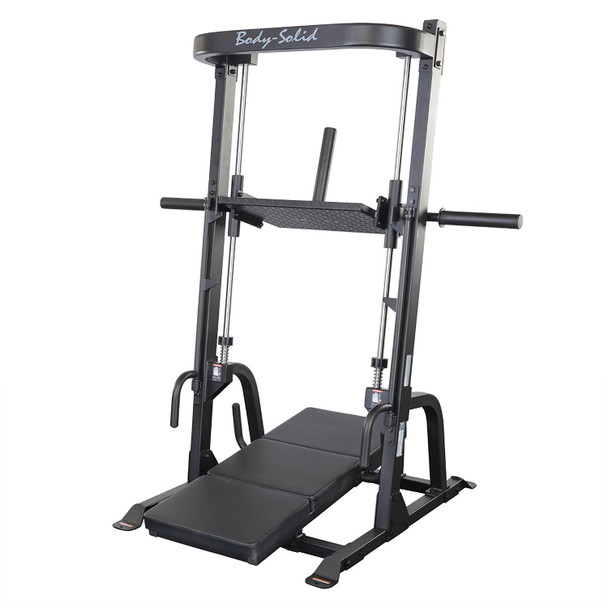

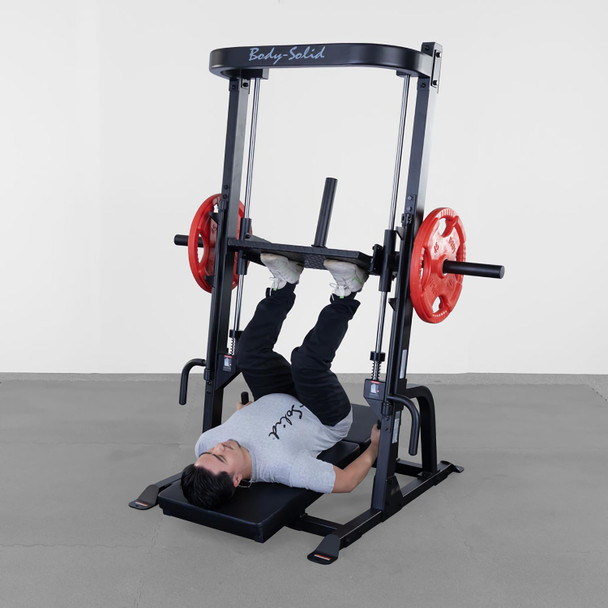

The Body-Solid (GVLP) Vertical Leg Press delivers effective lower-body training through a space-saving vertical design that emphasizes quadriceps, glutes, hamstrings, and calves. Unlike larger commercial leg press units that require substantial floor space, this premium plate-loaded leg press machine offers a compact footprint while still providing challenging resistance for serious strength training. The oversized non-slip footplate promotes secure foot placement and allows users to adjust stance width to emphasize different muscle groups. Featuring a sealed linear bearing system, it ensures exceptionally smooth carriage travel throughout the entire range of motion while conserving valuable floor space in home gyms, school weight rooms, and training studios.
Purchasing & Configuration Options:
- Order Includes: One (1) Body-Solid (GVLP) Vertical Leg Press with weight plate adapters.

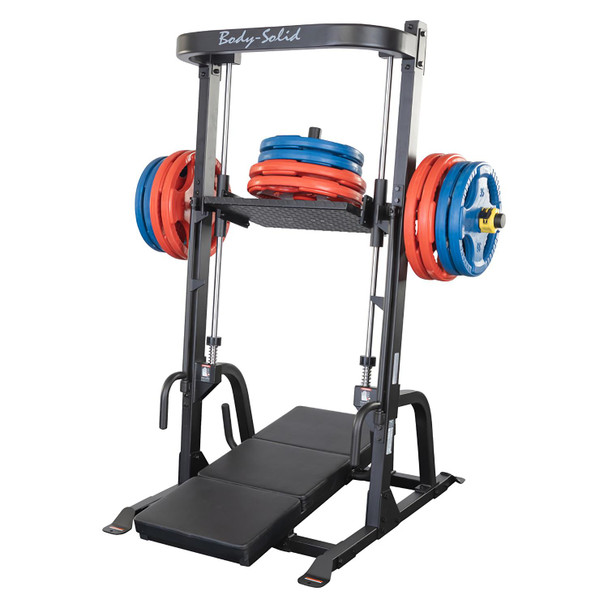

- Separate Inclusions: Weight plates pictured are sold separately.
- Assembly Notes: Assembly required on delivery.
Key Product Features
- Vertical Space Optimization: Compact vertical frame design significantly reduces the machine's overall footprint compared to traditional angled sled systems.
- Linear Bearing Drive: Sealed linear bearings ensure smooth, consistent carriage movement by minimizing friction under heavy tracking loads.

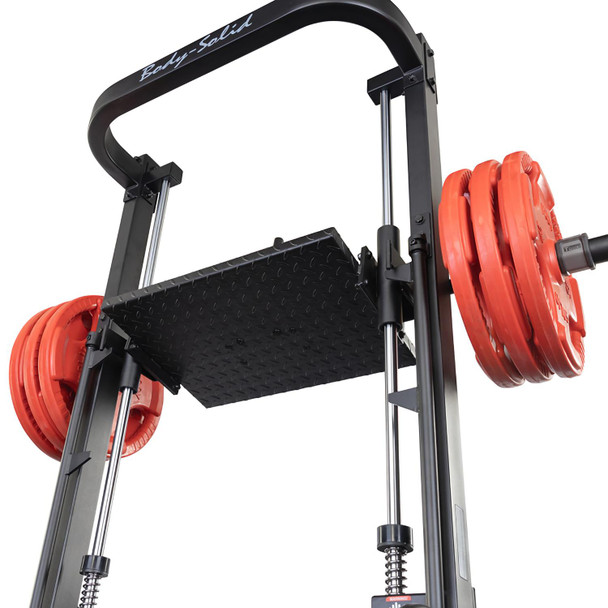

- Oversized Footplate: Non-slip extra-wide footplate allows versatile foot placement angles to isolate specific muscle groups safely.
- Ergonomic Back Support: Deeply padded back support and headrest isolate lower body muscle groups while eliminating strain on the spine.
- Dynamic Plate Adaptability: Three 11" weight horns accommodate standard 1" plates or 2" Olympic plates via the included adapter sleeves.
- 750 lb Structural Rating: Industrial steel tube configuration handles up to a 750 lb weight capacity with a 50 lb initial carriage weight.
Product Specifications
| Product Type | Plate-Loaded Vertical Leg Press Machine |
|---|---|
| Drive System | Sealed Linear Bearings / Guided Track Architecture |
| Weight Layout Index | Three 11" Long Storage Horns (1" Standard and 2" Olympic Compatible) |
| Load Parameters | 750 lbs Weight Capacity / 50 lbs Initial Carriage Starting Weight |
| Chassis Material | Heavy-Gauge Structural Carbon Steel / Matte Black Finish |
| Outer Dimensions | 53" L × 62" W × 72" H (Net Framework Weight: 241 lbs) |
| Grade Rating | Light Commercial Grade |
Ordering & Logistics Information
- Purchase Orders: We offer Net 30 payment terms only for schools, colleges, government groups, and military bases. Check out our gym equipment purchase order page to submit yours.
- Price Quotes: Click the "Add to Quote" button to build your list of items. Finalize the quote form and submit. Quotes are typically returned within one business day.
- Freight Carrier Shipping: Ships safely on wrapped pallets via large freight trucks. The delivery company will call you ahead of time to set up a delivery day and time window. Check out our full shipping policy details.
- Delivery Options: All freight shipments include standard curbside drop-off if your destination does not have a loading dock or a forklift. Liftgate service lowers heavy pallets safely to the ground at curbside and is recommended for residential addresses or locations without a dock.
- Handling & Tracking: Orders generally leave our warehouse within 3 to 5 business days. We will email tracking numbers directly to you as soon as your order ships.
- Transit Time: Allow up to 3-5 business days transit time depending on your location.
Frequently Asked Questions
Q: What specific physical advantages does a vertical leg press design hold over traditional 45-degree angled presses?
A: Traditional 45-degree commercial sleds require massive floor space, often stretching 80 to 90 inches in length. The GVLP vertical architecture shortens that space constraint to just 53 inches. Furthermore, the vertical travel path provides direct gravity resistance while keeping the lower back fully flat and protected against shearing force.
Q: How do the standard weight plate horns adapt to fit large 2-inch center hole Olympic plates?
A: Out of the box, the three built-in loading horns feature a 1-inch standard post profile. The package includes a full set of heavy-duty composite adapters that slide over and lock onto the 1-inch posts, instantly creating a thick 2-inch diameter sleeve to accommodate Olympic iron or rubber bumper plates perfectly.
Q: Can this guided lower-body machine withstand the daily volume of a massive membership public health club?
A: This machine carries a light commercial grade structural rating. It is engineered and warrantied to handle high-use non-membership training environments, such as high school athletic centers, rehabilitation clinics, corporate wellness amenities, police stations, and private home training studios.
Q: How heavy is the sliding carriage framework before any external weight plates are loaded onto the post pegs?
A: The empty un-loaded steel carriage mechanism has a base starting weight of 50 lbs. This provides a safe, manageable starting baseline resistance level for general physical rehab, deconditioned students, or target warm-up sets before adding progressive plate resistance.
Details
Grade: |
Light Commercial |
Warranty
Light Commercial Warranty
- Lifetime: Frame & Welds
- 3 Years: Bushings, Bearings, Hardware, & Guide Rods
- 1 Year: Upholstery & Grips (Normal Wear)
Home Warranty
- Lifetime: Frame & Welds
- Lifetime: Bushings, Bearings, Hardware, & Guide Rods
- Lifetime: Upholstery & Grips (Normal Wear)
