Description
Commercial Pressing and Back Training Without Cable Changes:

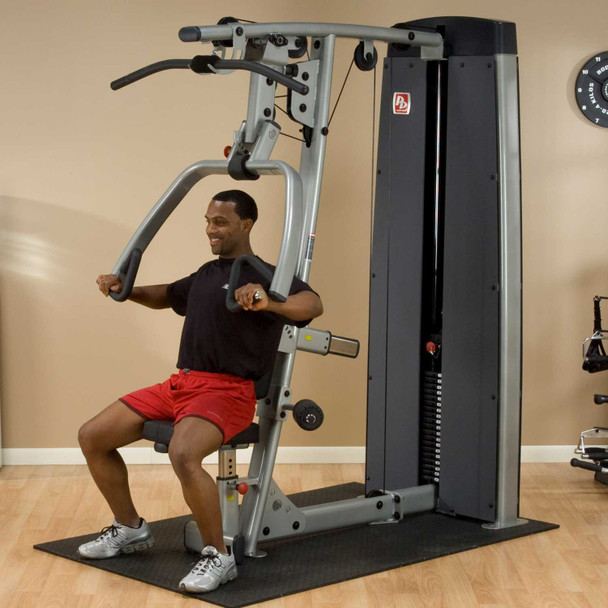

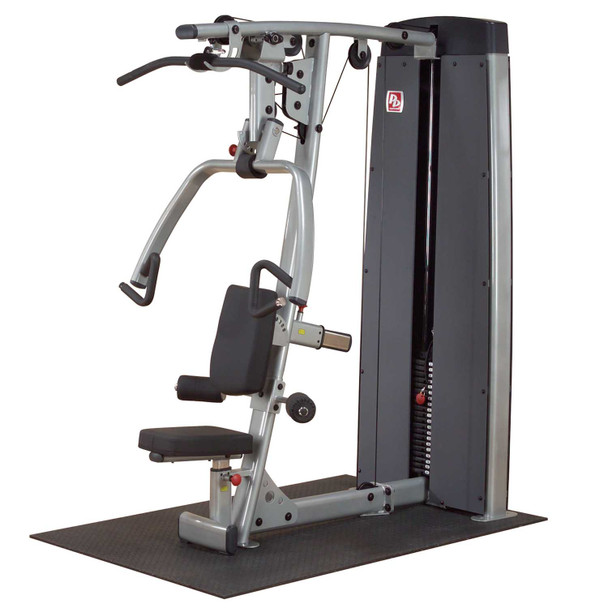

The Body-Solid (DPLS-SF) ProDual Vertical Press & Lat Machine combines chest, incline, and shoulder pressing with lat pulldowns and seated mid-rows in one commercial strength station. Its no-cable-change design supports quick transitions between pushing and pulling exercises, while adjustable press arms, multiple grip positions, back-pad adjustment, and seat-height adjustment help accommodate different users. An 11-gauge oval steel frame, fiberglass-reinforced nylon pulleys, sealed bearings, and 5.5 mm aircraft cable support smooth operation through repeated use. Available with a 210 or 310 lb weight stack, this selectorized weight machine suits schools, hotels, apartment fitness rooms, rehabilitation settings, training studios, and commercial gyms.
Quick Buying Guide:
- Order Includes: (1) Body-Solid DPLS-SF ProDual Vertical Press & Lat Machine

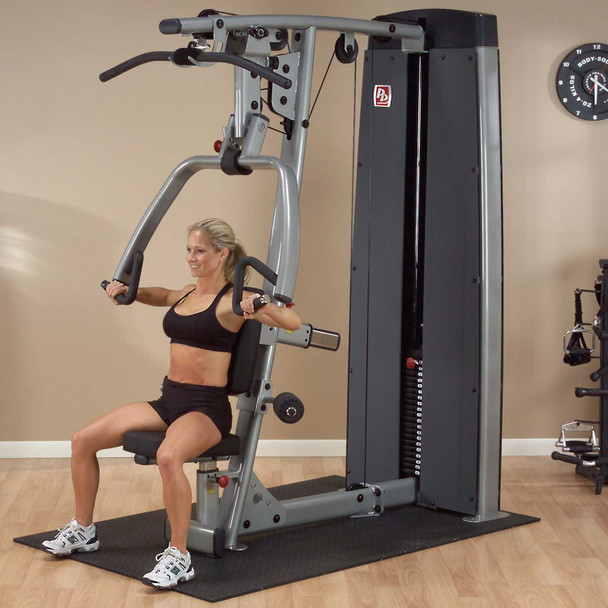

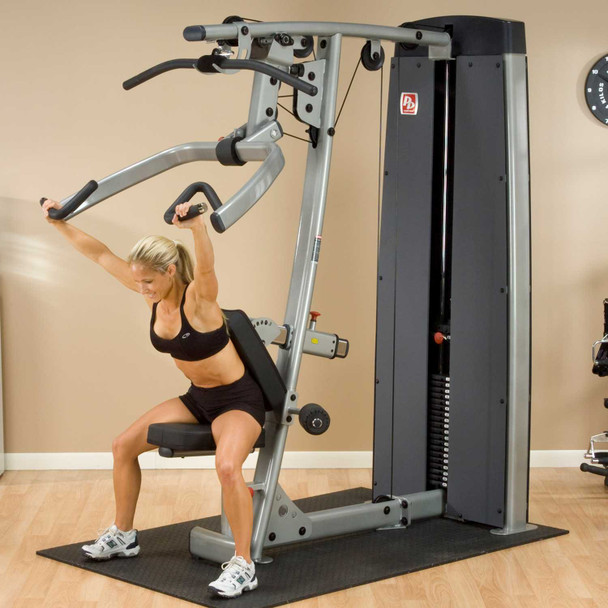

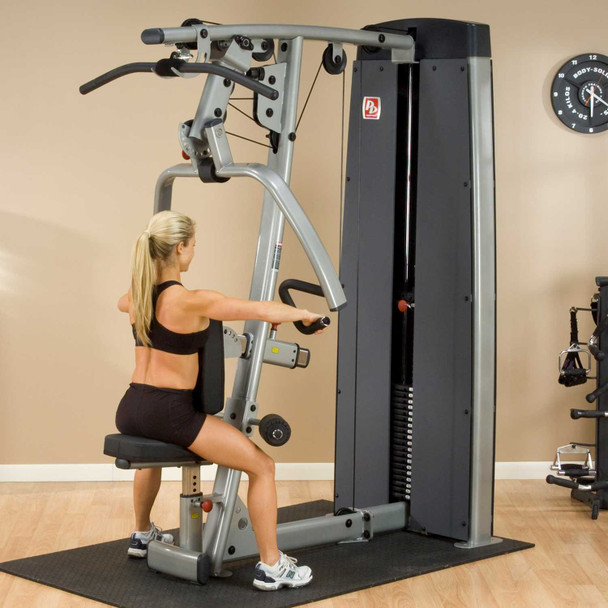

- Exercise Functions: Chest Press, Incline Press, Shoulder Press, Lat Pulldown, and Seated Mid-Row
- Weight Stack Options: 210 lbs or 310 lbs
- Exercise Transition: No Cable Change Required
- Assembly: Required
- Use: Home or Commercial
Key Product Features
- Five Upper-Body Exercises: Supports chest presses, incline presses, shoulder presses, lat pulldowns, and seated mid-rows from one station.
- No-Cable-Change Design: Allows users to move between pressing, pulldown, and rowing exercises without rerouting the cable.
- Adjustable Press Arm: Establishes an appropriate range of motion for different users and pressing movements.

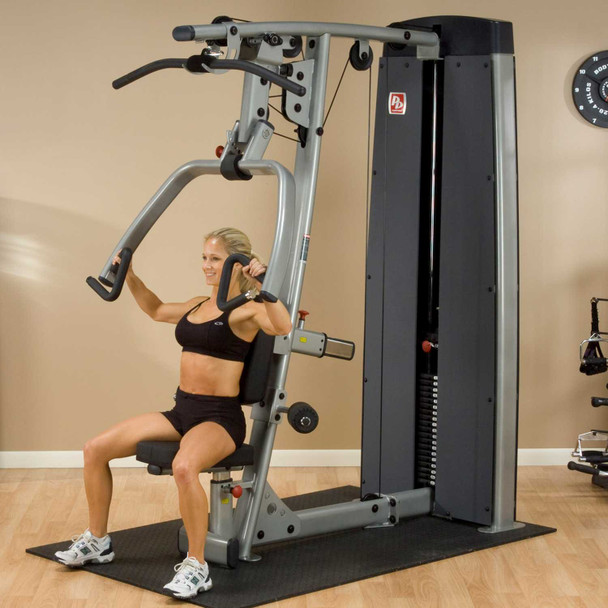

- Multiple Press Handles: Provide varied grip angles for chest, shoulder, and triceps training.
- Adjustable User Positioning: Back-pad and seat adjustments help accommodate different body sizes and exercise setups.
- Commercial Steel Frame: Uses 11-gauge oval tubing, 3-gauge connecting plates, and continuously welded frame construction.
- Heavy-Duty Cable System: The 5.5 mm spun steel aircraft cable is rated to more than 2,500 lbs.
- Reinforced Pulleys: Fiberglass-reinforced nylon pulleys use V-grooved channels and sealed ball bearings for smooth cable travel.
- Full Protective Shrouds: Enclose the weight stack and moving components while maintaining a finished commercial appearance.
- Instructional Placard: Provides convenient exercise and setup guidance for shared training environments.
Product Specifications
| Model | DPLS-SF |
|---|---|
| Product Type | ProDual Vertical Press & Lat Machine |
| Exercise Functions | Chest Press, Incline Press, Shoulder Press, Lat Pulldown, and Seated Mid-Row |
| Resistance Type | Selectorized Weight Stack |
| Weight Stack Options | 210 lbs or 310 lbs |
| Cable Configuration | No Cable Change Required Between Exercises |
| Press Arm | Adjustable |
| Press Handles | Multiple Ergonomic Grip Positions |
| Back Pad | Adjustable |
| Seat Height | Adjustable |
| Frame Material | 11-Gauge Steel |
| Mainframe Profile | 2.375" x 4.625" Oval Tubing |
| Connecting Plates | 3-Gauge Steel |
| Frame Finish | Electrostatically Applied Metallic Powder Coat with Clear Coat |
| Cable | 5.5 mm Spun Steel Aircraft Cable Rated Over 2,500 lbs |
| Pulleys | Fiberglass-Reinforced Nylon with V-Grooved Channels |
| Pulley Bearings | Precision-Ground Sealed Ball Bearings |
| Weight Plates | Machine-Drilled with Oversized Nylon Bushings |
| Guide Rods | Highly Polished Chrome-Plated Solid Steel |
| Weight Stack Protection | Full Shrouds and Covers |
| Dimensions | 67" L x 47" W x 83" H |
| Product Weight | 543 lbs with 210 lb Weight Stack |
| Assembly | Required |
| Use | Home or Commercial |
Need a Price Quote?
- Add desired products and quantities to your quote request using the "Add to Quote" button.
- Finalize and submit your form once complete.
- We typically respond within one business day with your personalized quote.
- Learn about price quotes for gym equipment.
School, College, Government & Military Purchase Orders
- We provide net 30 payment terms for schools, colleges, government, and military facilities.
- Learn about purchase orders for fitness equipment.
- Visit our school and college fitness equipment supplier page.
- Visit our government and military fitness equipment supplier page.
Delivery Information
- Shipping Method: Freight Carrier
- Leaves Warehouse: Up to 3–5 Business Days
- Transit Time: Up to 3–5 Business Days
- Delivery Appointment Required: Yes
- Delivery Location: Curbside or Loading Dock
- Freight Company Will Call for Appointment: Yes
- Tracking Provided: Yes
Details
Grade: |
Commercial |
Warranty
Home Use:
- All Parts: Lifetime
Commercial Use:
- Frame & Welds: Lifetime
- Pulleys, Bushings, Bearings, Hardware: 3 Years
- Upholstery, Grips: 1 Year
