Description
Dual-Column Cable Training with Independent Resistance:

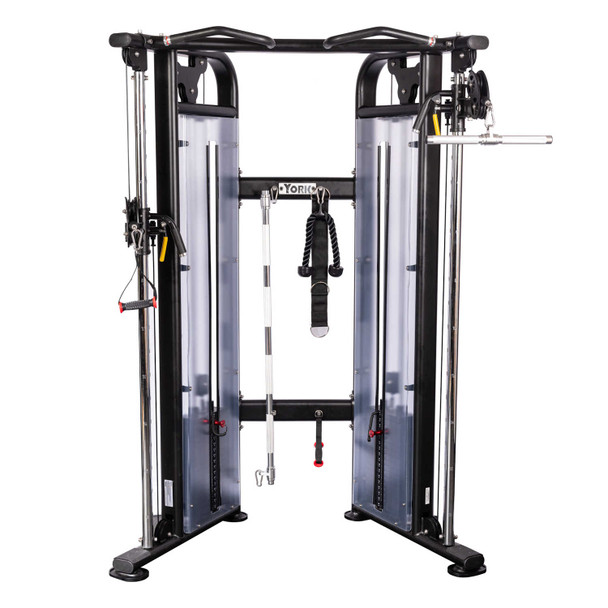

The York Barbell (STS) Commercial Functional Trainer combines two independently adjustable cable columns with a central multi-grip pull-up station for strength and functional exercise. Each pulley carriage offers 18 height settings, supporting presses, rows, curls, extensions, rotational patterns, and lower-body movements from multiple angles. Independent weight stacks accommodate unilateral and bilateral training, while the 2:1 cable ratio provides extended travel and approximately half the selected stack resistance at each handle. Included cable handles and bars expand exercise selection. This commercial cable machine fits home gyms, school weight rooms, college athletic facilities, personal training studios, military fitness centers, and commercial gyms.
Quick Buying Guide:
- Order Includes: (1) York Barbell (STS) Commercial Functional Trainer and six cable attachments
- Weight Stacks: Two independent stacks with 170 lbs total stack mass per side
- Effective Resistance: Approximately 85 lbs maximum at each handle
- Pulley Adjustment: Eighteen height positions per column
- Cable Ratio: 2:1
- Available Frame Colors: Silver or Matte Black
- Assembly: Assembly Required
- Use: Home or Commercial
Key Product Features
- Dual Adjustable Cable Columns: Two pulley carriages move independently for unilateral and bilateral exercises performed by one user.

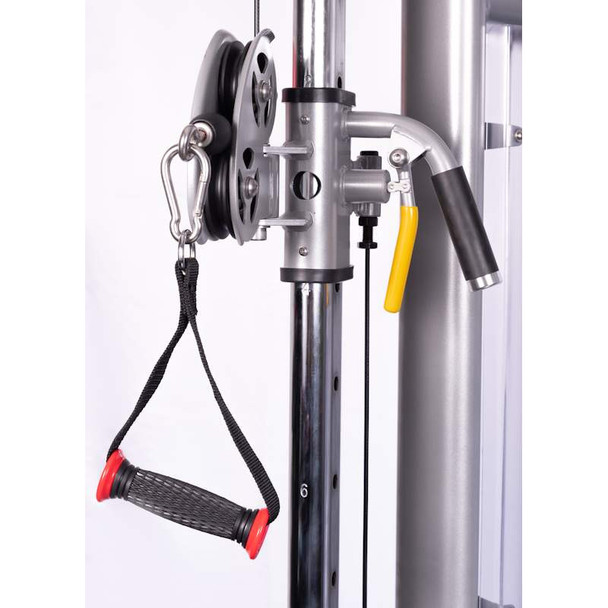

- Eighteen Pulley Heights: Each carriage adjusts from low to high starting positions for varied cable movement patterns.
- Independent Weight Stacks: Separate selectorized stacks allow each cable column to use its own resistance setting.
- 2:1 Cable Ratio: The pulley configuration provides approximately half the selected stack resistance at the handle with extended cable travel.
- 170 lb Total Stack Mass per Side: Each side contains sixteen 10 lb selector plates and one 10 lb top or counterweight assembly.

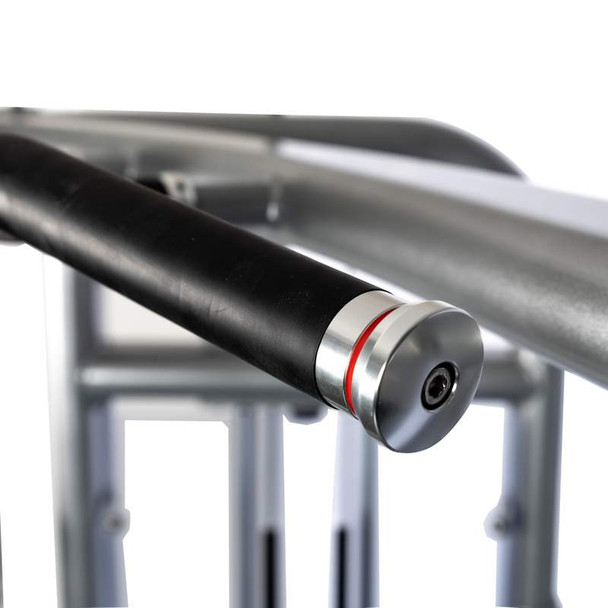

- Multi-Grip Pull-Up Station: The upper frame includes multiple hand positions for bodyweight pulling exercises.
- Included Cable Attachments: Short and long bars, stirrup handles, a tricep rope, and an ankle strap broaden the available exercise selection.
- Weight-Stack Shrouds: Enclosures cover the stack areas on both sides of the machine.
- Rubber Base Feet: Four rubber feet support the frame at its contact points with the floor.
- Steel Frame: The primary frame uses steel construction with a powder-coated exterior finish.
Product Specifications
| Product Name | York Barbell (STS) Commercial Functional Trainer |
|---|---|
| Manufacturer Models | 56000 Silver / 56001 Matte Black |
| Product Type | Dual-Stack Functional Cable Trainer |
| Material | Steel |
| Frame Finish | Powder Coat |
| Frame Colors | Silver or Matte Black |
| Cable Columns | Two Independently Adjustable Columns |
| Pulley Height Positions | Eighteen per Column |
| Cable Ratio | 2:1 |
| Weight Stacks | Two Independent Selectorized Stacks |
| Selector Plates | Sixteen 10 lb Plates per Side |
| Top Plate / Counterweight | 10 lbs per Side |
| Total Stack Mass | 170 lbs per Side |
| Maximum Effective Resistance | Approximately 85 lbs per Handle |
| Pull-Up Station | Multi-Grip |
| Front Width | 61.5" |
| Rear Width | 30" |
| Depth | 37" |
| Height | 82" |
| Shipping Dimensions | 25" × 95" × 46" |
| Shipping Weight | 792 lbs |
| Assembly | Assembly Required |
| Use | Home or Commercial |
Included Cable Attachments
| Attachment | Quantity |
|---|---|
| 19.5" Short Bar | One |
| 52" Long Bar | One |
| Stirrup Handles | Two |
| Tricep Press-Down Rope | One |
| Ankle Strap | One |
Need a Price Quote?
- Add desired products and quantities using the "Add to Quote" button.
- Finalize and submit your quote request once complete.
- Quotes are typically returned within one business day.
- Learn about gym equipment price quotes.
School, College, Government & Military Purchase Orders
- We provide net 30 payment terms for schools, colleges, government, and military facilities.
- Learn about purchase orders for fitness equipment.
- Visit our college and school exercise equipment supplier page.
- Visit our government and military workout equipment supplier page.
Delivery Information
- Shipping Method: Freight Carrier
- Leaves Warehouse: Up to 3–5 Business Days
- Transit Time: Up to 3–5 Business Days
- Delivery Appointment Required: Yes
- Delivery Location: Curbside or Loading Dock
- Freight Company Will Call for Appointment: Yes
- Tracking Provided: Yes
Details
Grade: |
Commercial |
Warranty
Home & Commercial Use:
- Frame: 5 Years
- Bearings/Bushings: 5 Years
- Cables: 1 Year
- Upholstery: 90 days (for wear-through and stitching)
- All other parts: 1 Year
