Description
TKO Achieve Dual Leg Extension/Curl for Balanced Thigh Training:

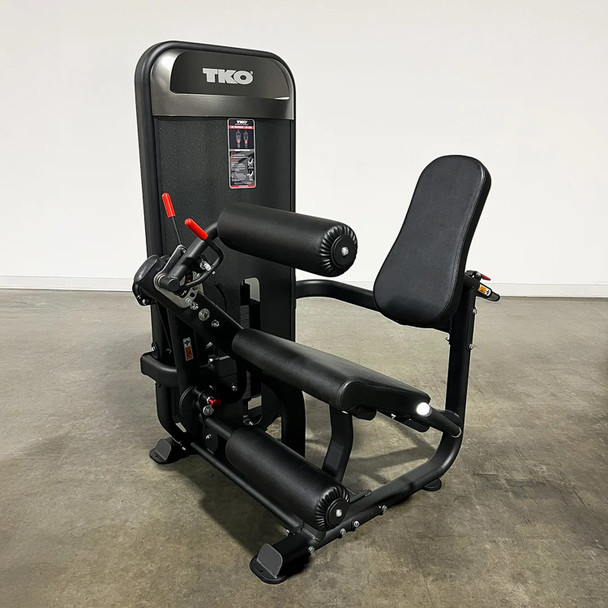

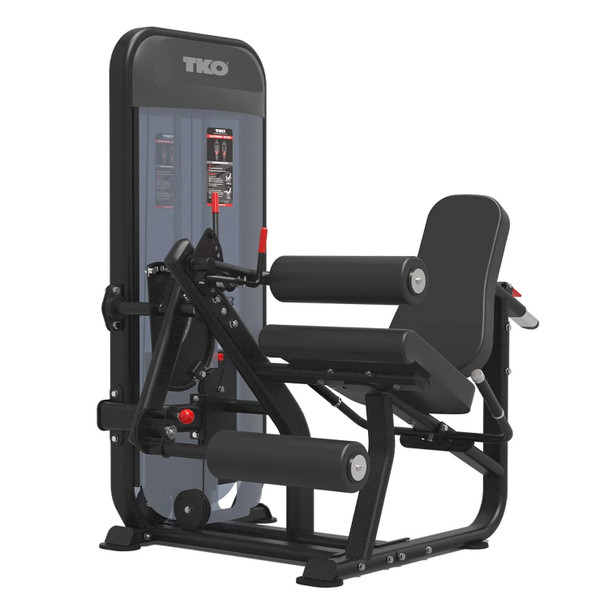

The TKO (8806-BK) Leg Extension/Curl Machine combines seated leg extensions and seated leg curls in one selectorized station for quadriceps and hamstring training. An adjustable back pad and multiple exercise starting positions help users establish an effective setup for both movements, while the shared resistance system keeps transitions simple between exercises. The compact dual-function design works well in home gyms, hotels, apartment communities, corporate wellness rooms, community centers, studios, and other light-commercial settings where floor space matters.
Exercise-Specific Adjustments Help Align the User with the Pivot:

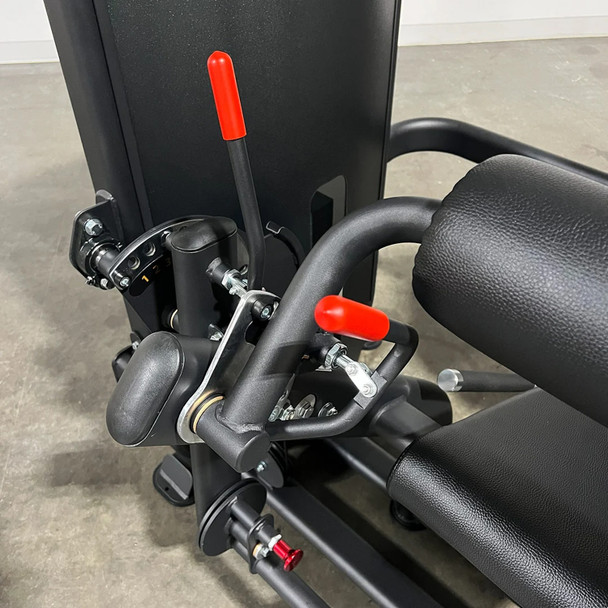

This quad extension and curl machine lets users reposition the back support and movement start for the selected exercise, helping accommodate different body sizes and preferred ranges of motion. The seated format keeps both quadriceps and hamstring work at one station, while the selectorized resistance system makes load changes quick between sets. An instructional placard also provides a convenient setup reference for users training without direct coaching.
Enclosed Light-Commercial Design Supports Shared Fitness Rooms:
This TKO Achieve Dual Leg Extension & Curl Machine uses electro-welded steel construction, high-use upholstery, reinforced pulleys, commercial cable, and a fully shrouded resistance system. The black frame and upholstery create a coordinated appearance with other Achieve Dual stations, while an available resistance upgrade accommodates facilities that need greater loading potential. Combining two common lower-body isolation exercises in one machine gives light-commercial facilities useful programming variety without dedicating separate floor space to each movement.
Key Product Features:
- Dual Leg Training: Combines seated leg extensions and seated leg curls.
- Six-Position Back Pad: Helps align different users with the machine pivot.
- Multiple Starting Positions: Supports exercise-specific setup and preferred movement ranges.
- Two Stack Choices: Offers a 170 lb standard stack with a 250 lb upgrade available.
- Compact Achieve Dual Frame: Replaces two single-function stations within a smaller floor area.
- Protective Rear Shroud: Encloses the moving weight-stack area.
- Instructional Placard: Shows users how to set up and perform both exercises.
Product Specifications:
| Model | 8806-BK |
|---|---|
| Product Type | Selectorized Leg Extension and Seated Leg Curl Machine |
| Available Exercises | Seated Leg Extension and Seated Leg Curl |
| Back-Pad Adjustment | 6 Positions |
| Movement Starting Positions | Multiple Positions for Both Exercises |
| Standard Weight Stack | 170 lbs |
| Weight Stack Upgrade | 250 lbs |
| Frame Finish | Matte Black |
| Upholstery Color | Black |
| Dimensions | 58" L x 49" W x 60" H |
| Product Weight | 425 lbs |
| Assembly | Required |
| Use | Home or Light Commercial |
Ideal Training Environments:
- Hotels, Apartments & Corporate Fitness Rooms: Two lower-body isolation exercises share one compact light-commercial station.
- Community Centers & Personal-Training Studios: Adjustable setup points and simple selectorized resistance changes accommodate varied users.
- Serious Home Gyms: A single station provides guided quadriceps and hamstring training without requiring separate machines.
Need a Price Quote:
- Add desired products and quantities using the "Add to Quote" button.
- Finalize and submit your quote request once complete.
- Quotes are typically returned within one business day.
- Learn about fitness equipment price quotes.
School, College, Government & Military Purchase Orders:
- We provide net 30 payment terms for qualified schools, colleges, government agencies, and military facilities.
- Learn about purchase orders for exercise equipment.
- Visit our school and college fitness equipment supplier page.
- Visit our military and government fitness equipment supplier page.
Delivery Information:
- Shipping Method: Freight Carrier
- Leaves Warehouse: Up to 3-5 Business Days
- Transit Time: Up to 3-5 Business Days
- Delivery Appointment Required: Yes
- Delivery Location: Curbside or Loading Dock
- Freight Company Will Call for Appointment: Yes
- Tracking Provided: Yes
Frequently Asked Questions:
- Does the TKO 8806-BK Leg Extension/Curl Machine ship free? Yes. Gtech Fitness includes free shipping on the machine, helping simplify the total cost of adding a dual-function light-commercial leg station.
- Which exercises does the machine combine? The station supports seated leg extensions for the quadriceps and seated leg curls for the hamstrings.
- How does the machine adjust for different users? The back pad offers multiple positions, and both exercises provide adjustable starting points so users can establish a comfortable relationship to the machine pivot and movement range.
- What resistance options are available? The standard configuration uses a 170 lb selectorized weight stack, with a 250 lb stack available when greater top-end resistance is needed.
- How much space should I reserve for the machine? The machine measures approximately 58 inches long, 49 inches wide, and 60 inches high. Allow additional clearance at the front and sides for comfortable entry, back-pad adjustment, and unrestricted movement of the lower-leg roller during both exercises.
Details
Grade: |
Light Commercial |
Warranty
Home & Light Commercial Use:
- Frame: 10 Years
- Parts: 5 Years
- Limited Parts: 6 Months
Product Reviews
-
Great Machine
This is my second purchase from this company, and once again, the delivery was impressively fast, arriving the very next day. A truck with a lift gate dropped the machine directly in my garage, which made things much easier. Assembly itself isn’t overly difficult, but it is tedious and definitely a test of character. I broke it into two sessions, and overall the process took about four hours. You’ll need two different sizes of ratchets and sockets or it will take even longer. One important tip is that this machine weighs around 600 pounds and cannot be moved once assembled. Be sure to leave some space from the wall, or you’ll struggle to install the top panel screws. The build quality is excellent, solid and truly commercial grade. The cushions and materials feel sturdy and professional. What matters most to me is the compact footprint. Since this is for my home gym, where I also have a Murphy bed, space efficiency is critical. I previously purchased a TKO glute machine, and the quality has been consistently impressive, living up to the brand’s reputation. I highly recommend this leg curl and extension machine.
