Description
Inflight Liberator Three-Stack Gym for Multi-User Strength Training:
The Inflight Fitness Liberator Multi-Station Gym uses three independent 200 lb selectorized weight stacks to serve four exercise positions within one coordinated strength system. The base layout combines chest press, ab crunch, and overhead triceps work; leg extension and leg curl exercises; biceps curls and low rows; plus lat pulldowns and shoulder presses. This arrangement gives facilities broad upper-body, lower-body, arm, back, and core training options without requiring a separate machine frame for every exercise.
Heavy-Duty Cable Components Support Repeated Strength Training:
This multi-station strength system uses one-inch ball-bearing pivots on the press arms, quarter-inch cables rated to 4,000 lbs, and large 4.5-inch and 6-inch pulleys to support durable, smooth cable movement. Powder- and clear-coated steel shrouds enclose the resistance areas, while molded vinyl-covered pads support the seated exercise positions. Each standard stack can be increased in 50 lb increments up to 300 lbs, allowing facilities to match available resistance to stronger users and evolving programs.
Optional Fourth Stack Adds Another Training Station:
The Inflight 6070S Liberator System can expand beyond its three-stack base with an optional leg press or cable column, adding another resistance stack and another exercise station to the layout. The cable-column configuration provides 17 pulley-height settings with a 2:1 cable ratio for adjustable functional movements. Larger five- and eight-stack Liberator configurations provide additional expansion paths, giving apartment fitness rooms, studios, schools, and recreation facilities a way to increase exercise variety and user capacity as training needs grow.
Key Product Features:
- Three Independent Weight Stacks: Provide separate selectorized resistance sources within the base system.
- Four Base Exercise Positions: Cover pressing, core, triceps, leg, arm, row, pulldown, and shoulder exercises.
- Upgradeable Resistance: Each standard 200 lb stack can increase in 50 lb increments up to 300 lbs.
- One-Inch Ball-Bearing Pivots: Support durable, smooth press-arm movement.
- 4,000 lb Rated Cables: Quarter-inch cables provide heavy-duty resistance transmission.
- Large Pulley System: Uses 4.5-inch and 6-inch pulley diameters for cable routing.
- Steel Stack Shrouds: Powder- and clear-coated panels enclose the resistance areas.
- Optional Fourth Stack: Adds a leg press or cable column for another dedicated training position.
- Expandable Liberator Platform: Supports larger five- and eight-stack configurations as facility needs grow.
Included Training Positions:

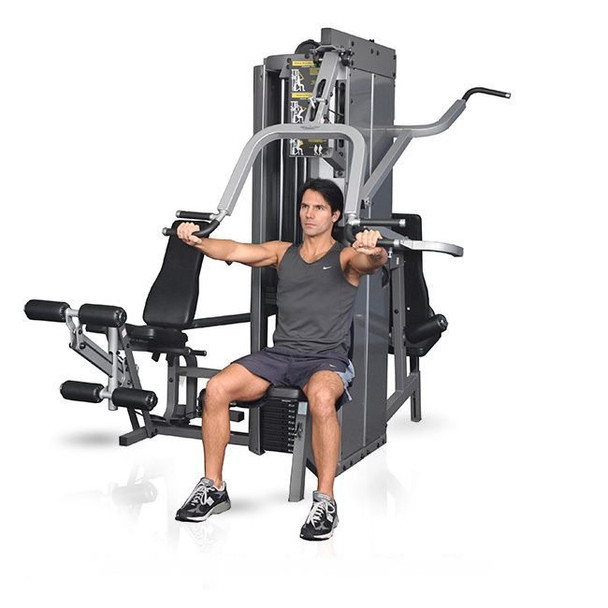

| Exercise Position 1 | Chest Press, Ab Crunch, and Overhead Triceps |
|---|---|
| Exercise Position 2 | Leg Extension and Leg Curl |
| Exercise Position 3 | Biceps Curl and Low Row |

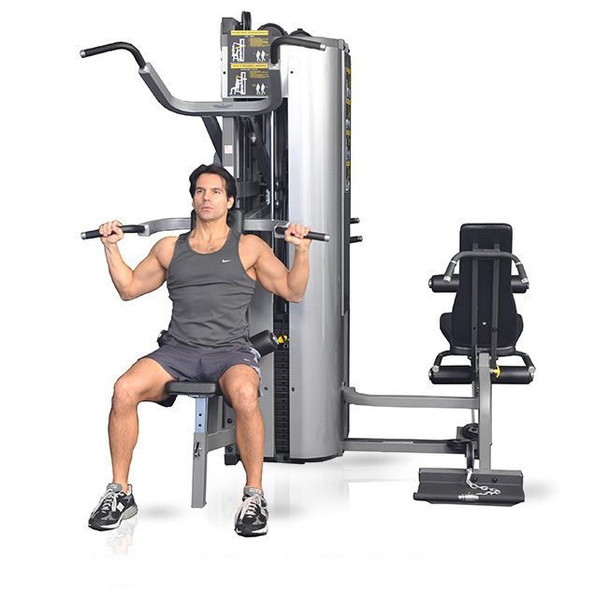

| Exercise Position 4 | Lat Pulldown and Shoulder Press |
| Optional Additional Position | Leg Press or Cable Column with Additional Weight Stack |
Product Specifications:
| SKU | 6070S |
|---|---|
| Product Type | Three-Stack Multi-Station Strength System |
| Base Exercise Positions | 4 |
| Standard Weight Stacks | Three 200 lb Stacks |
| Weight-Stack Upgrades | 50 lb Increments up to 300 lbs per Standard Stack |
| Press-Arm Bearings | 1" Ball-Bearing Pivots |
| Cable Diameter | 0.25" |
| Cable Rating | 4,000 lbs |
| Pulley Diameters | 4.5" and 6" |
| Frame Construction | 12-Gauge Steel Tubing |
| Frame Color | Silver |
| Seat Pads | Vinyl-Covered HR Molded Pads |
| Seat-Pad Durometer | 40-45 |
| Weight-Stack Shrouds | Powder- and Clear-Coated Steel with Instructional Placards |
| Standard Dimensions | 85" L x 79" W x 85" H |
| Dimensions with Optional Leg Press | 85" L x 96" W x 85" H |
| Optional Fourth Stack | Leg Press or Cable Column |
| Optional Cable Column Adjustments | 17 Height Settings |
| Optional Cable Column Ratio | 2:1 |
| Expanded Configurations | Five-Stack and Eight-Stack Liberator Systems |
| Assembly | Required |
| Use | Home or Light Commercial |
Ideal Training Environments:
- Apartment & Hotel Fitness Rooms: Three weight stacks support four exercise positions within a centralized light-commercial strength system.
- Personal Training Studios: Pressing, lower-body, arm, row, pulldown, and shoulder functions give coaches multiple exercise options around one machine.
- School & Recreation Facilities: Upgradeable stacks and optional add-on stations provide room to increase resistance and training variety over time.
Need a Price Quote:
- Add desired products and quantities to your quote request using the "Add to Quote" button.
- Finalize and submit your form once complete.
- We typically respond within one business day with your personalized quote.
- Learn about price quotes for exercise equipment.
School, College, Government & Military Purchase Orders:
- We provide net 30 payment terms for schools, colleges, government, and military facilities.
- Learn about purchase orders for workout equipment.
- Visit our college and school gym equipment supplier page.
- Visit our military and government fitness equipment supplier page.
Delivery Information:
- Shipping Method: Freight Carrier
- Leaves Warehouse: Up to 3-5 Business Days
- Transit Time: Up to 3-5 Business Days
- Delivery Appointment Required: Yes
- Delivery Location: Curbside or Loading Dock
- Freight Company Will Call for Appointment: Yes
- Tracking Provided: Yes
Details
Grade: |
Light Commercial |
Warranty
Home & Light Commercial Use:
- Frame & Weights: Lifetime
- Parts & Hardware: 1 Year
- Upholstery & Padding: 90 Days
