Description

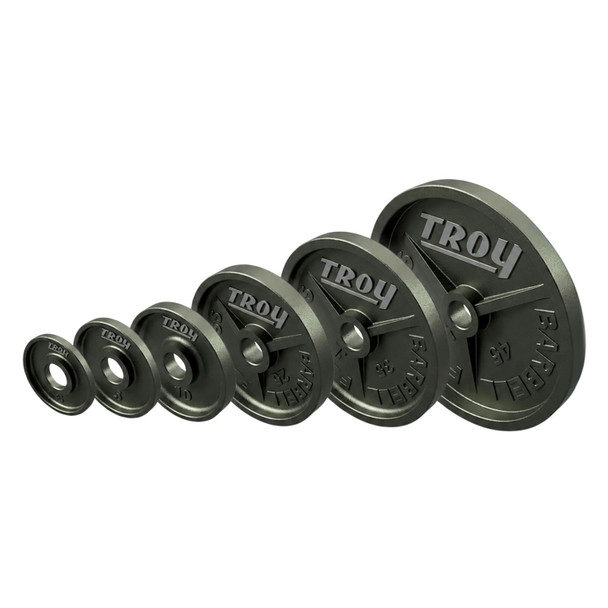

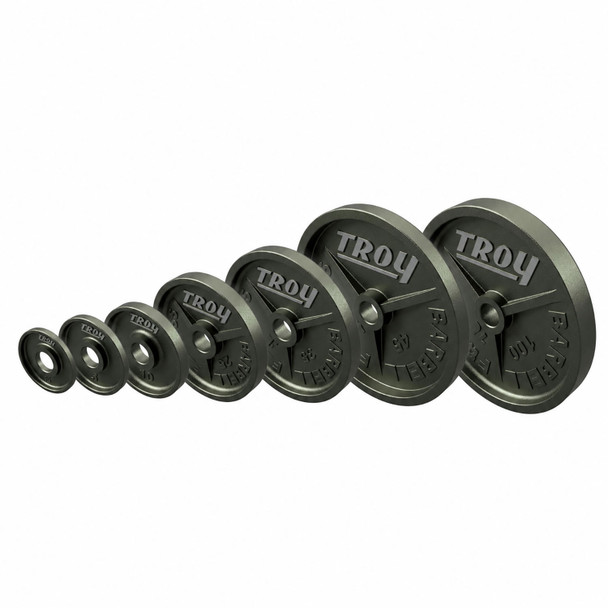

Troy Machined Weight Plates with a Classic Deep-Dish Design
The Troy (HO) Machined Weight Plates bring the classic look and feel of deep-dish iron plates to modern strength rooms. Each plate starts with ASTM Grade 20 cast iron. Troy then machines the rim, sides, back, and center hole for a clean fit and even shape. This process also keeps each plate within plus or minus two percent of its listed weight for more balanced bar loading.
A Wide Flange Makes the Plates Easier to Handle
A wide outer flange gives lifters a solid place to hold the plate when moving it from a rack or loading a bar. The deep-dish shape also leaves more of the plate edge open for the hands. Baked Hammertone Gray enamel covers the iron with a traditional finish, while raised weight markings help users find the right size during fast weight changes throughout daily workouts.
Individual Plates, Matching Packs, and Stock Sets
Choose one plate to replace a missing weight, matching packs to supply several stations, or a stock set for a full weight room. Available weights run from 2.5 lb change plates to 100 lb plates for heavy loading. Troy (HO) Olympic Plates fit compatible two-inch Olympic bars and plate-loaded machines, making them a practical choice for home gyms, schools, training centers, and shared commercial fitness facilities.
Key Product Features
- Fully Machined Construction: Machined rims, sides, backs, and center holes support a consistent shape and fit.
- Plus or Minus 2% Weight Tolerance: Helps lifters build more balanced working loads.
- ASTM Grade 20 Cast Iron: Provides a solid base for home and commercial strength training.
- Deep-Dish Wide Flange: Leaves more of the plate edge open for carrying, loading, and unloading.
- Baked Hammertone Gray Enamel: Gives the cast iron a traditional finished surface.
- Raised Weight Markings: Make each plate size easier to identify during workouts.
- Seven Available Weights: Supports smaller load changes and heavy barbell training.
Product Specifications
| Series | HO |
|---|---|
| Product Type | Machined Olympic Weight Plate |
| Material | ASTM Grade 20 Cast Iron |
| Machined Surfaces | Rim, Sides, Back, and Center Hole |
| Weight Tolerance | +/- 2% |
| Center Hole Diameter | 50.4 mm |
| Bar Compatibility | Compatible Olympic Bars and Equipment with 2" Sleeves |
| Plate Profile | Solid Round Plate with Deep-Dish Wide Flange |
| Finish | Baked Hammertone Gray Enamel |
| Weight Identification | Raised Plate Markings |
| Individual Plates Sold | Singly |
| Assembly | Not Required |
| Use | Home or Commercial |

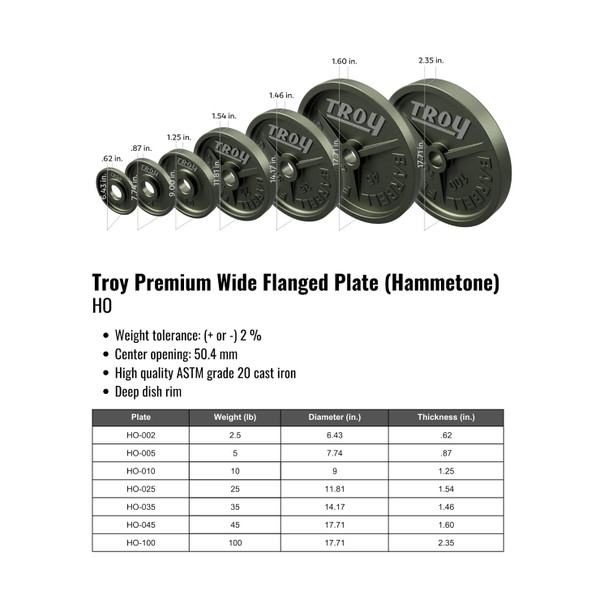

Available Plate Sizes
| Plate Weight | Outer Diameter | Plate Thickness | Center Hole |
|---|---|---|---|

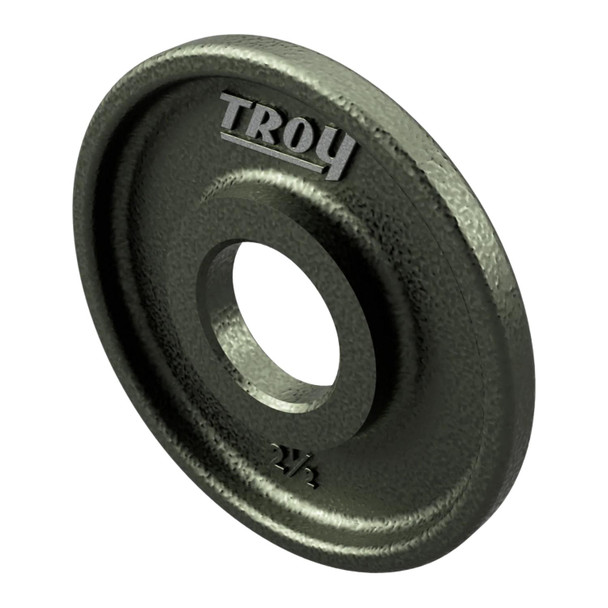

| 2.5 lbs | 6.25" | 0.63" | 50.4 mm |
| 5 lbs | 7.75" | 0.87" | 50.4 mm |
| 10 lbs | 9.00" | 1.12" | 50.4 mm |
| 25 lbs | 11.81" | 1.45" | 50.4 mm |

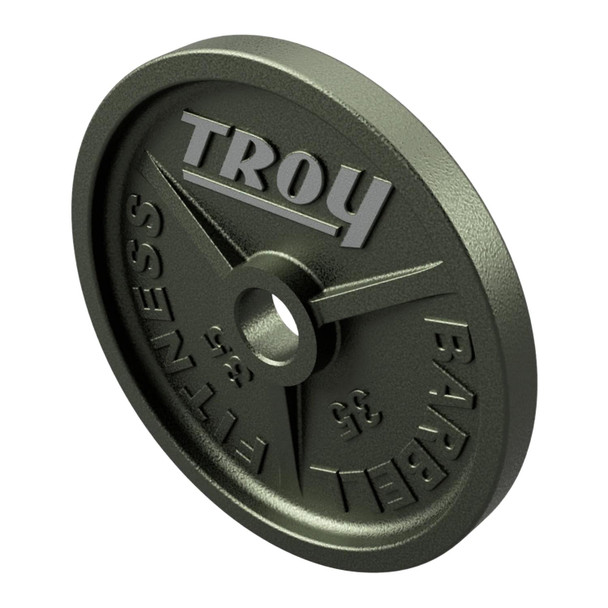

| 35 lbs | 14.17" | 1.57" | 50.4 mm |
| 45 lbs | 17.72" | 1.45" | 50.4 mm |
| 100 lbs | 17.72" | 2.87" | 50.4 mm |
Available Stock Plate Sets
| Stock Set | Includes |
|---|---|
| 245 lb Set | (2) 45 lb, (2) 35 lb, (2) 25 lb, (2) 10 lb, (2) 5 lb, and (2) 2.5 lb plates |
| 255 lb Set | (2) 45 lb, (2) 35 lb, (2) 25 lb, (2) 10 lb, (4) 5 lb, and (2) 2.5 lb plates |
| 345 lb Set | (4) 45 lb, (2) 35 lb, (2) 25 lb, (2) 10 lb, (4) 5 lb, and (2) 2.5 lb plates |
| 355 lb Set | (4) 45 lb, (2) 35 lb, (2) 25 lb, (2) 10 lb, (6) 5 lb, and (2) 2.5 lb plates |
| 455 lb Set | (6) 45 lb, (2) 35 lb, (2) 25 lb, (4) 10 lb, (4) 5 lb, and (2) 2.5 lb plates |
| 690 lb Set | (8) 45 lb, (4) 35 lb, (4) 25 lb, (4) 10 lb, (8) 5 lb, and (4) 2.5 lb plates |
| 1,380 lb Set | (16) 45 lb, (8) 35 lb, (8) 25 lb, (8) 10 lb, (16) 5 lb, and (8) 2.5 lb plates |
| 2,760 lb Set | (32) 45 lb, (16) 35 lb, (16) 25 lb, (16) 10 lb, (32) 5 lb, and (16) 2.5 lb plates |
Available Plate Packs
| Plate Pack | Includes |
|---|---|
| 4 Pack | (4) Matching Plates in the Selected Weight |
| 6 Pack | (6) Matching Plates in the Selected Weight |
| 8 Pack | (8) Matching Plates in the Selected Weight |
| 10 Pack | (10) Matching Plates in the Selected Weight |
