Description
Forward-Facing Hip Training with Easy Stack Access

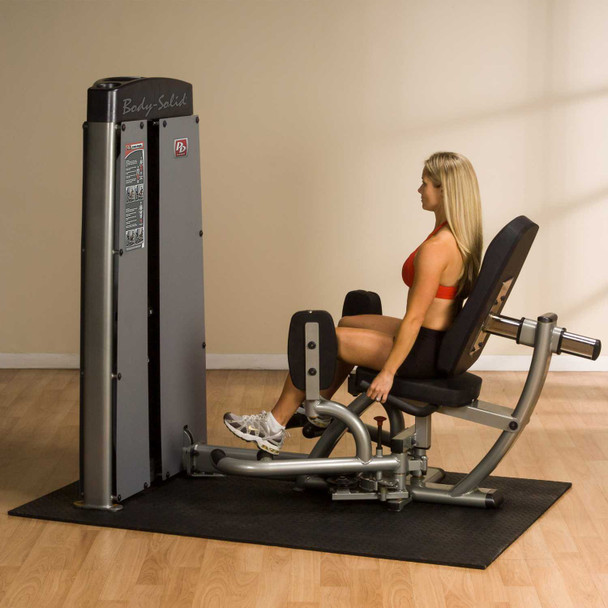

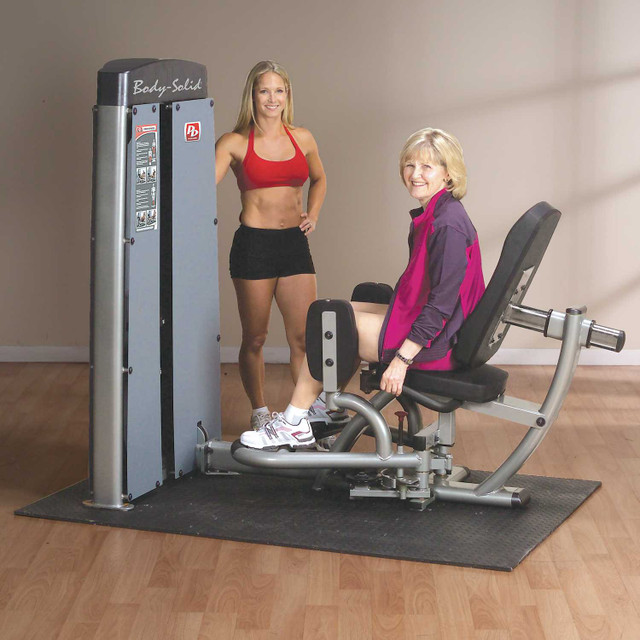

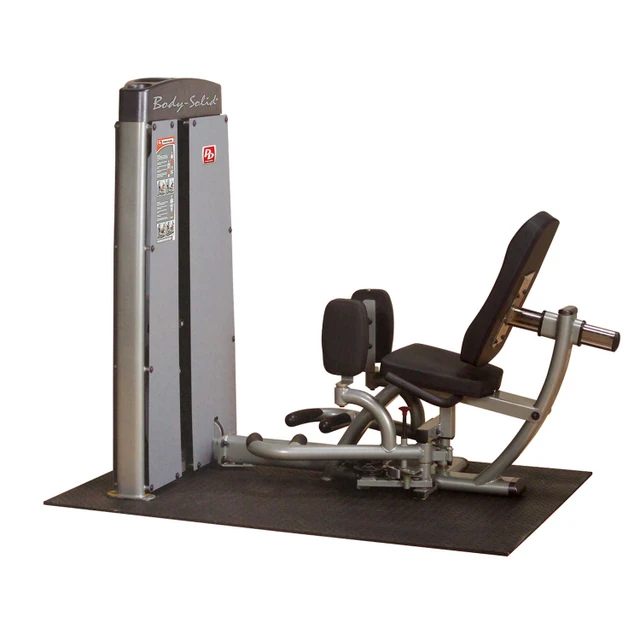

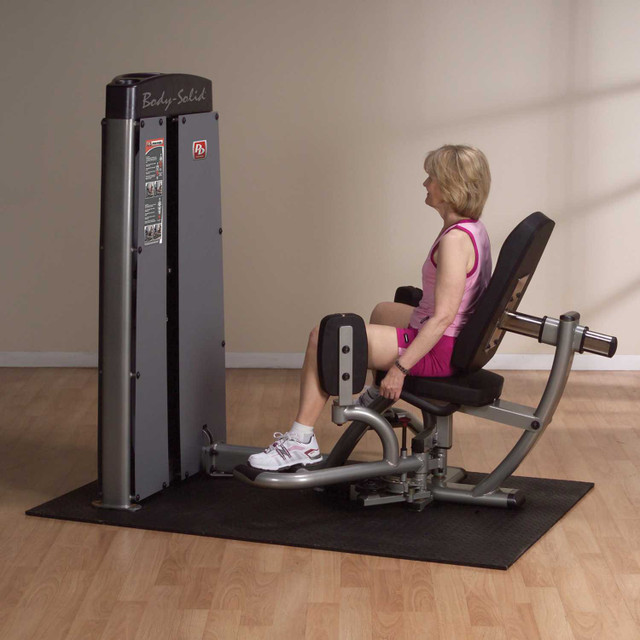

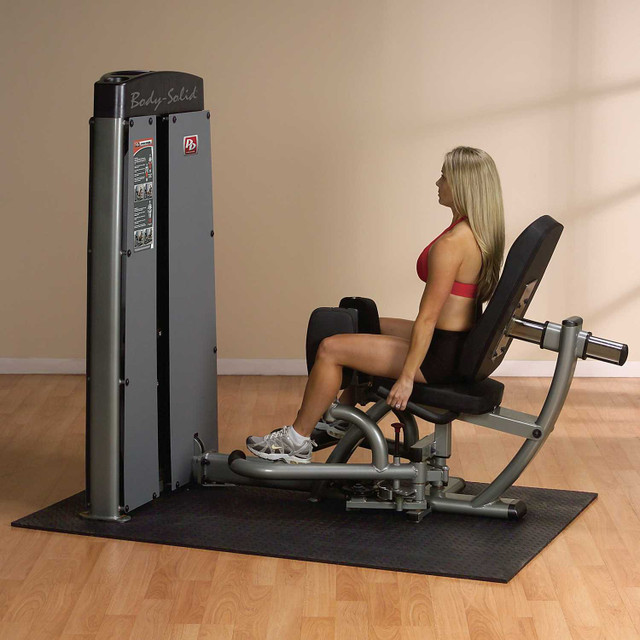

The Body-Solid (DIOT-SF) Inner/Outer Thigh keeps users facing the resistance stack during hip adduction and abduction exercises. This orientation provides convenient weight selection and more privacy than layouts that turn the user toward the room. Oversized rotating knee pads adapt to both movement directions, while dual non-skid foot posts and support handles help users maintain a stable seated position through controlled inner- and outer-thigh repetitions.
Nine Seat Positions and Adjustable Movement Range
A nine-position back pad on the Body-Solid Inner/Outer Thigh Machine changes the user’s distance from the movement pivot. The easy-reach pop-pin then establishes the starting angle and range for each exercise, helping accommodate different leg lengths and mobility levels. Four sealed pillow-block bearing systems guide the movement, and the available stack choices allow buyers to match resistance capacity to the facility’s expected training population.
Commercial Construction for Dedicated Hip Programs
This commercial inner and outer thigh machine uses an 11-gauge oval steel mainframe, reinforced nylon pulleys, aircraft cable, and DuraFirm™ padding for repeated facility use. Schools, wellness centers, apartment communities, studios, rehabilitation settings, and commercial gyms gain two complementary hip exercises in one station. The unit can operate independently or integrate with compatible ProDual multi-stack configurations. Its forward-facing layout keeps exercise supervision and resistance changes convenient for users and staff.
Key Product Features
- Forward-Facing Design: Keeps the stack visible and supports user privacy.
- Oversized Rotating Knee Pads: Reposition for adduction and abduction exercises.
- Nine-Position Back Pad: Accommodates different user sizes and training positions.
- Pop-Pin Range Control: Selects the starting angle for each movement.
- Dual Non-Skid Foot Posts: Provide stable foot placement during training.
- Four Pillow-Block Bearings: Support smooth movement through the chosen range.
- Two Stack Choices: Offers 210 lb and 310 lb resistance configurations.
Product Specifications
| SKU | DIOT-SF |
|---|---|
| Product Type | Selectorized Inner and Outer Thigh Machine |
| Available Exercises | Hip Adduction and Hip Abduction |
| Resistance Type | Selectorized Weight Stack |
| Weight Stack Options | 210 lbs or 310 lbs |
| Seat-Back Adjustment | 9 Positions |
| Range-of-Motion Adjustment | Pop-Pin Starting-Position Control |
| Knee Pads | Oversized and Rotating |
| Foot Placement | Dual Non-Skid Foot Posts |
| Movement Bearings | Four Sealed Pillow-Block Systems |
| Mainframe | 11-Gauge, 2.375" x 4.625" Oval Steel Tubing |
| Cable | 5.5 mm Aircraft Cable Rated to 2,500 lbs |
| Upholstery | DuraFirm™ over 2" High-Density Foam |
| Dimensions | 76" L x 36" W x 62" H |
| Product Weight | 475 lbs with 210 lb Stack |
| Assembly | Required |
| Use | Home or Commercial |
Ideal Training Environments
- Commercial Fitness Centers: Two stack choices and commercial construction support dedicated hip training for a varied membership.
- Rehabilitation and Wellness Facilities: Nine back-pad positions and adjustable starting range allow careful setup for users with different mobility levels.
- School and Collegiate Strength Rooms: Forward-facing controls make resistance selection and exercise supervision more convenient during structured programs.
Need a Price Quote?
- Add desired products and quantities using the "Add to Quote" button.
- Finalize and submit your quote request once complete.
- Quotes are typically returned within one business day.
- Learn about gym equipment price quotes.
School, College, Government & Military Purchase Orders
- We provide net 30 payment terms for qualified schools, colleges, government agencies, and military facilities.
- Learn about purchase orders for workout equipment.
- Visit our school and college fitness equipment supplier page.
- Visit our military and government fitness equipment supplier page.
Delivery Information
- Shipping Method: Freight Carrier
- Leaves Warehouse: Up to 3-5 Business Days
- Transit Time: Up to 3-5 Business Days
- Delivery Appointment Required: Yes
- Delivery Location: Curbside or Loading Dock
- Freight Company Will Call for Appointment: Yes
- Tracking Provided: Yes
Details
Grade: |
Commercial |
Type: |
Inner/Outer Thigh Machines |
Warranty
Home Use:
- All Parts: Lifetime
Commercial Use:
- Frame & Welds: Lifetime
- Pulleys, Bushings, Bearings, Hardware: 3 Years
- Upholstery, Grips: 1 Year
